A robust, compact solution for LV metering applications in demanding environments.
The HXWLCC is a durable stainless steel meter cabinet designed for low-voltage (LV) metering, ideal for commercial and industrial (C&I) customers. It integrates metering, sampling, and protection functions into one reliable unit — supporting smart energy management and accurate monitoring.
Why Choose It:
- Weather-resistant stainless steel enclosure
- Integrated protection and sampling elements
- Ideal for complex load environments and infrastructure hubs

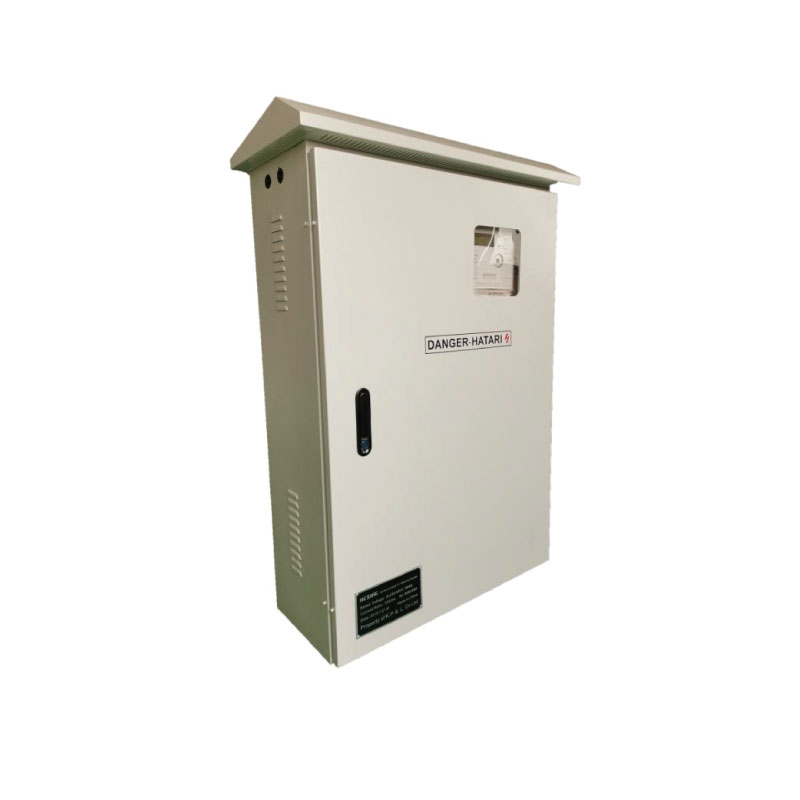

HXWLCC Stainless Steel Meter Cabinet
Engineered Protection. Smart Utility Integration.
The HXWLCC series is a premium range of stainless steel meter cabinets designed for low-voltage (LV) metering applications in both indoor and outdoor environments. Built to withstand harsh conditions, each cabinet offers superior protection, tamper resistance, and flexible installation for commercial, industrial, and utility-grade metering.
Crafted with high-quality, corrosion-resistant stainless steel, the HXWLCC is fully sealed and lockable, featuring advanced anti-tamper mechanisms and remote communication capabilities — making it ideal for modern smart metering environments.
Main Features
High Protection & Durability IP-rated for dust and water ingress (IEC60529 compliant)
- UV stabilised, flame retardant, and vibration-resistant
- Anti-corrosive and rust-proof stainless steel body
- Withstands extreme temperatures and outdoor exposure
Anti-Tamper Security Sealable and lockable cabinet doors
- Built-in door-open detection sensors
- Designed to detect unauthorised access and energy theft
Smart Integration Ready Compatible with direct or CT-connected meters (0.5S / 0.2S accuracy)
- Supports MCCBs (100A to 600A) and remote communication via GPRS
- Remote load control (connect/disconnect)
- Optional Customer Interface Unit (CIU) for tenant access
Key Applications
- Commercial & Industrial (C&I) metering
- Boundary metering and line loss analysis
- Remote load control
- Prepaid and post-paid smart metering environments
Installation & Accessibility
- Suitable for ground, wall, or pole mounting
- Accommodates all standard cable sizes

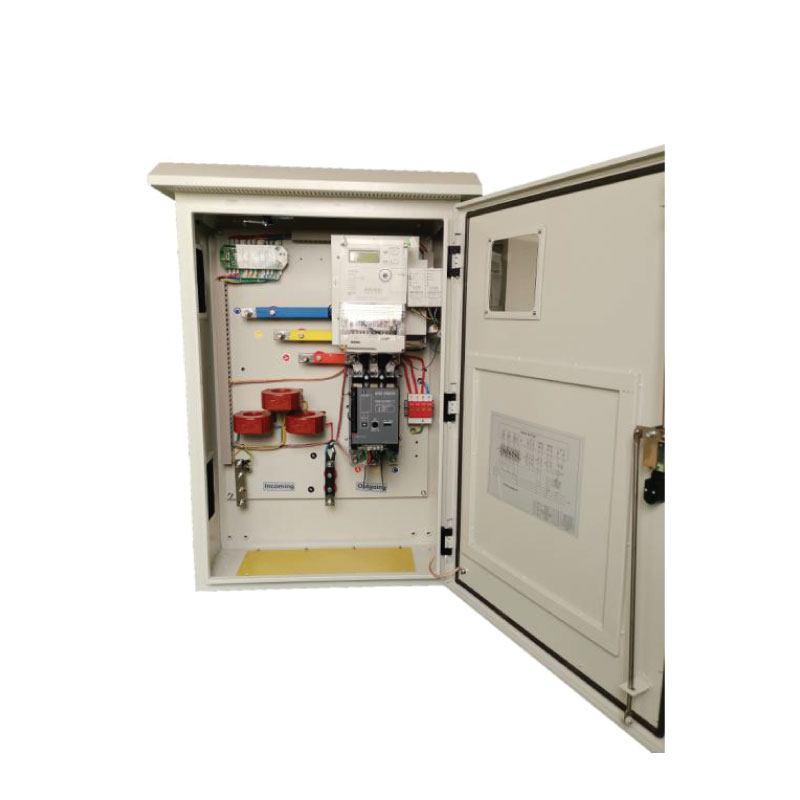

- Flexible internal space for meter, CT, modem, and breakers
- User-friendly access with optional customer interface unit
Product Advantages
- Real-time theft detection with automated disconnection and alerts
- Overload, short circuit, and surge protection
- Auto-disconnection when balance is depleted (prepaid mode)
- Durable in all conditions with a high IP protection class
Related Products
Technical Specifications
| Weight | 65 kg |
|---|---|
| Dimensions | 78 × 34 × 111 cm |
| Rated Current | 100A, 200A, 300A, 400A, 500A, 600A |
